Various types (Single-jet / Double-jet) - Features consistent measurement under various flow

  levels.


Jet types / Lengths are variable according to special installation conditions.

Rotatable indicator - Features good measurement from various angles.

Good durability - with use of highly durable special materials.



Size

Type(Division)

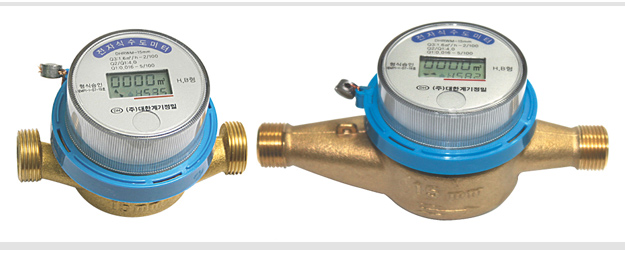

Single-jet Dry-type

Double-jet Dry-type
15mm 20mm 25mm 15mm 20mm 25mm
Overload flow rate (§©/h) 2.0 3.12 5.0 2.0 3.120 5.0
Maximun flow rate) (§©/h) 1.6 2.5 4.0 1.6 2.5 4.0
Minimun flow rate) (§©/h) 0.016 0.025 0.04 0.016 0.025 0.04

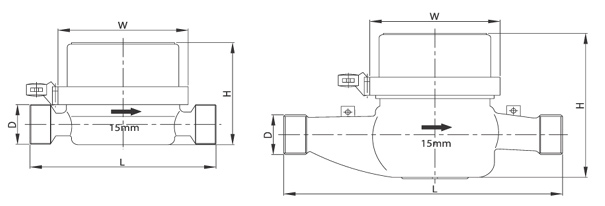

Demension Thread (mm) PF 3/4" PF 1" PF 1 1/4" PF 3/4" PF 1" PF 1 1/4"
Length (mm) 110 130 130 160 190 225
Height (mm) 67 68 69 94 65 104
Width (mm) 79
Environment Grade B
