Max. Pressure   1MPa
  Max. Temperature   100¡É
  Min. Unit   1§¤
  Max. Registration   99,999,999 §¤
  Accuracy   ¡¾2%
  Installation   Vertical installation   required




This SSW-FC type special water gauge features accurate

  measurement with five different impellers, making it possible to measure any liquids for uses for food and chemical purposes.

Outer Housing .....Stainless
Rotor ..................Steel
Measurement device - Teflon

Type Diameter(mm) Scope of flow(§©/h)
SSW-FC-25 A 20mm 0.5 ~ 2.5
B 25mm 1.0 ~ 5.0
SSW-FC-40 A 40mm 2.9 ~ 9.0
B 40mm 3.0 ~ 15.0
SSW-FC-50 A 50mm 3.0 ~ 15.0
B 50mm

6.0 ~ 25.0

Type Diameter(mm) Scope of flow(§©/h)
SSW-FC-25E A 20mm 0.1 ~ 2.5
B 25mm 0.4 ~ 5.0
SSW-FC-40E A 40mm 0.7 ~ 10
B 40mm 1 ~ 15
SSW-FC-50E A 50mm 2 ~ 15
B 50mm

3 ~ 25

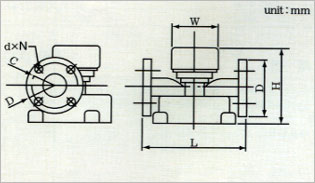

(Unit : mm)
TYPE SIZE
L H D W T C N d
SSW-FC-25 225 188 125 110 18 90 4 19
SSW-FC-40 245 197 140 110 20 105 4 19
SSW-FC-50 245 197 155 110 20 120 4 19






Measurable materials: Crude oil, Lactic Acid Drink, Alcohol, Beer, Rice Wine, Liquor, Coke, Seasoning, Cooking oil, Syrup, Beverage, Juice, Chemical, Solvent, or any other liquid type substances.
..

  Max. Pressure   1MPa
  Max. Temperature   100¡É
  Accuracy   ¡¾2%
  Installation   Horizontal installation   required




Parts and measurement device of this water gauge are made

  out of stainless steel, carbon, and teflon, preventing corrosion by various liquids and securing good operation and durability.


Good durability

Thermal resistant

Improved quality

  Scope of flow(§¤/h) Maximum integration Minimum unit
SSFC-R25 250 ~ 2,500 999,999,99 §¤ 0.01 §¤
SSFC-R40 400 ~ 6,000 99,999,999 §¤ 1 §¤
SSFC-R50 1,200 ~ 15,000 99,999,999 §¤ 1 §¤
SSFC-R65 2,000 ~ 30,000 99,999,999 §¤ 1 §¤
SSFC-R80 4,000 ~ 40,000 99,999,999 §¤ 1 §¤

  Scope of flow(§¤/h) Maximum integration Minimum unit
SSFC-RE25 150 ~ 2,500 9,999,999 §¤ 1 §¤
SSFC-RE40 200 ~ 6,000 9,999,999 §¤ 1 §¤
SSFC-RE50 500 ~ 15,000 9,999,999 §¤ 1 §¤
SSFC-RE65 800 ~ 30,000 9,999,999 §¤ 1 §¤
SSFC-RE80 1,000 ~ 40,000 9,999,999 §¤ 1 §¤

(Unit : mm)
Type SIZE
L W H D C d N
SSFC-R25 225 110 235 125 90 19 4
SSFC-R40 245 110 270 140 105 19 4
SSFC-R50 320 110 290 155 120 19 4
SSFC-R65 400 110 305 175 140 19 4
SSFC-R80 440 110 315 185 150 19 8


Case : Stainless Steel

Impeller : Carbon, Special Synthetic Resin,

  ......................Teflon

Packing, Teflon
