Good performances at any places, without respect to water flow / pressure level. |
|
Intuitive numerical indication. Injected with Antifreeze to secure clear indication and prevent freeze. |
|
Light-type highly durable Engineering Plastic to secure good durability. |
|
Rotatable cap. Classification of Left / Right is thus unnecessary. Features easy installation and |
| |
measurement. |
|
| |
 |
| |
 |

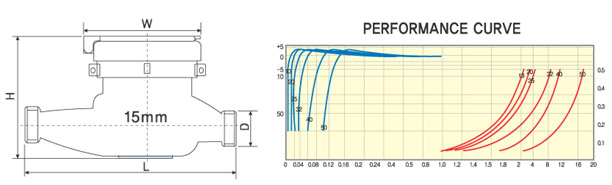

Type |
Size(mm)
|
Length(L)
|
Height(H)
|
Width(W)
|
Screws used |
Diameter(D)
|
Inches |
Weight (kg)
|
| MW-15 |
15 |
165 |
100 |
95 |
PF¨ú" |
26.4 |
14 |
1.1 |
| MW-20 |
20 |
190 |
109 |
100 |
PF1" |
33.2 |
11 |
1.7 |
| MW-25 |
25 |
225 |
114 |
100 |
PF1¨ù" |
41.9 |
11 |
2.0 |
| MW-32 |
32 |
230 |
116 |
100 |
PF1¨ö" |
47.38 |
11 |
2.3 |
| MW-40 |
40 |
245 |
130 |
117 |
PF2" |
59.6 |
11 |
3.0 |
| MW-50 |
50 |
305 |
155 |
138 |
PF2¨ö" |
70 |
11 |
5.1 |
|
| |
 |
Type |
Operation flow
(L/h)
|
Minimum flow
(Q©û)
|
Flow range for good operation
(§©/h)
|
Maximum flow
(Q©ý)
|
Indicated amount |
Minimum value(L)
|
Maximum value(§©)
|
| MW-15 (100 multiple) |
6 |
16L/h |
0.016 ~ 0.8 |
1.6 |
0.1 |
99.999 |
| MW-20 (100 multiple) |
10 |
25L/h |
0.025 ~ 1.2 |
2.5 |
0.1 |
99.999 |
| MW-25 (100 multiple) |
15 |
40L/h |
0.040 ~ 1.6 |
4 |
0.1 |
99.999 |
| MW-32 (100 multiple) |
20 |
63L/h |
0.063 ~ 3.2 |
6.3 |
0.1 |
99.999 |
| MW-40 (100 multiple) |
30 |
100L/h |
0.1 ~ 4.0 |
10 |
0.1 |
99.999 |
| MW-50 (100 multiple) |
50 |
160L/h |
0.16 ~ 6.0 |
16 |
1 |
999.999 |
|
| |
|
| |
|
