Good measurement with indicator parts exposed to the front. Secures no intervention from alien

  substance.

Features automatic cutoff device. Integrated indicator prevents Slipping on an occasion of momentary flow.

Good durability in cold weather. Backflow-preventive device(Option) perfectly secures no backflow and

  prevents water leakage.

Prevents any damages to the indicator parts due mostly to over pressure. Features easy remote

  measurement.

The said backflow-preventive device is optional.

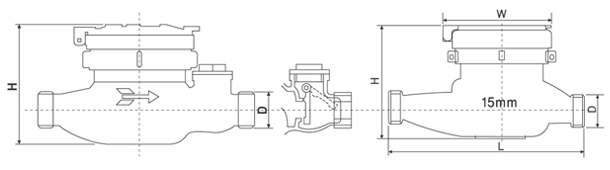

Type Size(mm)

Length

Height

Width

Screws used

Diameter

Inches

Weight(kg)
MD15 15 165 96 95 PF¨ú" 26.4 14 1.1
MD20 20 190 105 101 PF1" 33.2 11 1.7
MD25 25 225 110 101 PF1¨ù" 41.9 11 2.0

Type

Operation flow
(L/h)

Minimum flow
(Q1)

Flow range for good operation
(§©/h)

Maximum flow
(Q3)

Indicated amount

Minimum value(L)

Maximum value(§©)
MD 15 (100multiple) 6 16L/h 0.016~0.80 1.6 0.1 9.999
20
(100multiple)		 10 25L/h 0.025~1.2 2.5 0.1 99.999
25
(100multiple)
 15 40L/h 0.040~1.6 4 1 99.999
