Various types (Single-jet / Double-jet) - Features consistent measurement under various flow

  levels.


Jet types / Lengths are variable according to special installation conditions.

Rotatable indicator - Features good measurement from various angles.

Good durability - with use of highly durable special materials.


Size
Type (Division)

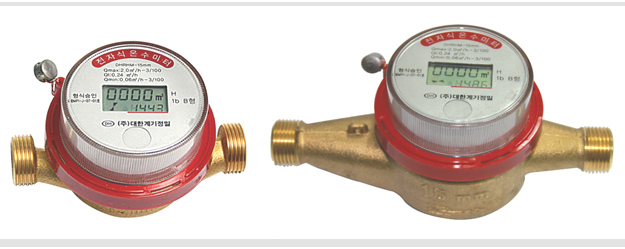

Single-jet Dry-type

Double-jet Dry-type
15mm 20mm 25mm 15mm 20mm 25mm

Maximum flow (§©/h)

2.0 3.0 4.0 2.0 3.0 4.0

Flow variation (§©/h)

0.24 0.32 0.4 0.24 0.32 0.4

Minimum flow (§©/h)

0.06 0.08 0.1 0.06 0.08 0.1
Demension Thread (mm) PF 3/4" PF 1" PF 1 1/4" PF 3/4" PF 1" PF 1 1/4"
Length (mm) 110 130 130 160 190 225
Height (mm) 67 68 69 94 95 104
Width (mm) 79
Mzsimun Temperature (¡É) 90(1-b)
Environment Grade B
