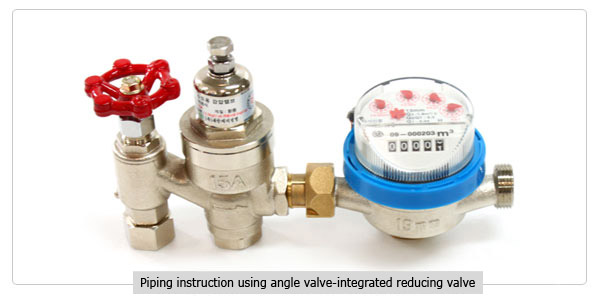

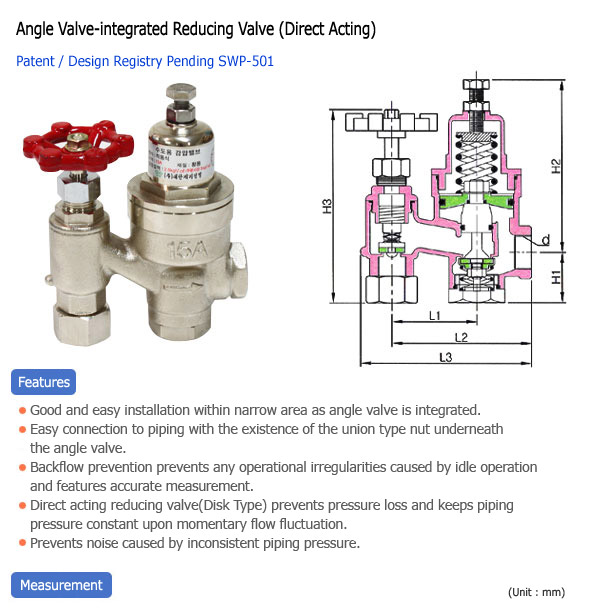

| L1 |
L2 |
L3 |
H1 |
H2 |
H3 (OPEN) |
d |
| 49 |
83.5 |
98.5 |
29 |
100 |
110 |
PT 1/2 |
|
 |
 |
| Pipe Size |
15A/20A |
| Type |
Direct Acting Type |
| Applicablefluid |
Cold & Hot water |
Pressure in use (Phase 1) |
MAX, 10kgf/§²(0.98 MPa) |
Pressure in use (Phase 2) |
0.5~3.0, 2.5~5.0kgf/§² |
Standard pressure set |
2.5 kgf/§²(0.245 MPa) |
| Applicable temperature |
MAX, 80¡É |
Minimum operating
differential pressure |
0.5 kgf/§²(0.049 MPa) |
Maximum pressure reducing ratio |
5 : 1 |
Minimum adjusting flow |
5% of rated flow |
Coupling method |
KS-certified taper screw(Rc), NPT screw |
Materials |
BODY |
CAC203 (Ni-Cr) |
| COVER |
CAC203 (Ni-Cr) |
Operational part |
DISK(C3604BE) Ni-Cr |
| SPRING |
SWRH 72B(Ni-Cr) |
| DISC |
HOLDER(3604BE), NBR |
| PACKING & O-RING |
E.P.D.M |
|
| |
| |
|
|
