- Industrial Water gauge
- LCD Industrial Water
 gauge
- LCD-ER Industrial Water
 gauge




  Liquid   Water
  Max. Pressure   1MPa
  Max. Temperature   100¡É
  Min. Unit   1§¤
  Max. Registration   99,999,999§¤
  Accuracy   ¡¾2%
  Installation   Vertical installation   required



Improving the existing wing and impeller type gauge, the SSW-type gauge features small and light size,

  rarely interrupted by any alien substances for good uses in water supply to boiler, chemical purposes, and plants.

Type Diameter(mm) Scope of flow(§©/h)
SSW-25 A 25mm 0.5 ~ 2.5
B 25mm 1.0 ~ 5.0
SSW-40 A 40mm 2.9 ~ 9.0
B 40mm 3.0 ~ 15.0
SSW-50 A 50mm 3.0 ~ 15.0
B 50mm 6.0 ~ 25.0

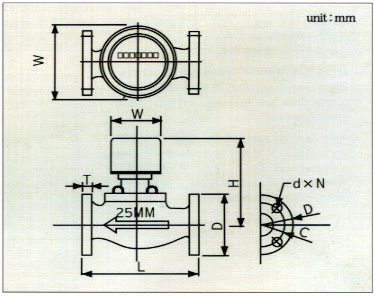

(Unit : mm)
TYPE SIZE
L H  D  W T C d N
SSW-25 225 188 125 110 18 90 19 4
SSW-40 245 197 140 110 20 105 19 4
SSW-50 245 197 155 110 20 120 19 4


Precise measurement is done by 5 different PPS

  Synthetic Resin Impeller, featuring easy disassembly.


Body : FC-20

Measurement device : PPS Synthetic Resin

Impeller : PPS Synthetic Resin
