This is for use of any circumstances that general type water gauge may not measure, such as factory waste water, industrial water, water pipes, petrochemical purposes, etc.
..

  Max. Pressure   1MPa
  Max. Temperature   100¡É
  Accuracy   ¡¾2%
  Installation   Vertical installation   required




Good for waste water facilities as the gauge filters alien
  substances well for good measurement.
Major parts of the body are made of stainless steel, making it
  available to gauge chemical liquids.
Measurement part is separable from the piping, making it
  feasible to utilize easy inspection and maintenances.


Improved from general water gauge operating under water

  pressure, this propeller-type gauge makes it feasible to operate under slight water flow.

Type Diameter(mm) Scope of flow(§©/h)

Maximum integration

Minimum unit
SSWCA-40 40 9 - 20 §©/h 99,999,999 §© 1L
SSWCA-50 50 9 - 25 §©/h 99,999,999 §© 1L
SSWCA-65 65 12 - 40 §©/h 99,999,999 §© 1L
SSWCA-80 80 14 - 60 §©/h 99,999,999 §© 1L
SSWCA-100 100 20 - 80 §©/h 999,999,99 §© 10L
SSWCA-125 125 25 - 120 §©/h 999,999,99 §© 10L
SSWCA-150 150 30 - 200 §©/h 999,999,99 §© 10L
SSWCA-200 200 50 - 300 §©/h 999,999,99 §© 10L

Type Diameter(mm) Scope of flow(§©/h) Maximum integration Minimum unit
SSWCA-40E 40 2 - 30 §©/h 9,999,999 §¤ 1L
SSWCA-50E 50 2 - 30 §©/h 9,999,999 §¤ 1L
SSWCA-65E 65 3 - 45 §©/h 9,999,999 §¤ 1L
SSWCA-80E 80 3 - 70 §©/h 9,999,999 §¤ 1L
SSWCA-100E 100 4 - 100 §©/h 9,999,999 §¤ 1L
SSWCA-125E 125 5 - 140 §©/h 9,999,999 §¤ 1L
SSWCA-150E 150 8 - 250 §©/h 9,999,999 §¤ 1L
SSWCA-200E 200 10 - 400 §©/h 9,999,999 §¤ 1L

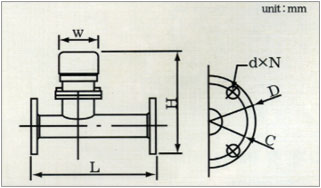

MODEL L H W D C d N
SSWCA-40 337 320 110 140 105 19 4
SSWCA-50 337 320 110 155 120 19 4
SSWCA-65 406 330 110 175 140 19 4
SSWCA-80 406 340 110 185 150 19 8
SSWCA-100 508 385 110 210 175 19 8
SSWCA-125 508 385 110 250 210 23 8
SSWCA-150 559 470 110 280 240 23 8
SSWCA-200 560 520 110 330 290 23 12

Body : SUS 304

Impeller : SUS 304, Acetal Resin

Calculation part : Integration Gauge

Other major parts : Bronze, Brass,

  ............SUS 304, Special Synthetic Resin
