| Size(mm) |
15 |
20 |
25 |
Overloading flow
(Q4) (§©/h)
|
2.0 |
3.12 |
5.0 |
Maximum flow
(Q3) (§©/h)
|
1.6 |
2.5 |
4.0 |
Flow variation
(Q2) 6.3 (§©/h)
|
0.101 |
0.158 |
0.252 |
Minimum flow
(Q1) (§©/h)
|
0.016 |
0.025 |
0.04 |
Maximum indicatable level
(§©)
|
9,999 |
99,999 |
Maximum operating pressure (Mpa)
|
1(10bar) |
|
|
| Size(mm) |
15 |
20 |
25 |

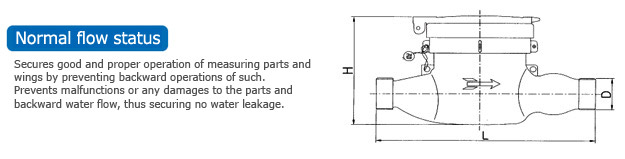

| L |
165 |
190 |
225 |
| H |
100 |
109 |
114 |
| W |
95 |
100 |
100 |
| D |
PF¨ú" |
PF1" |
PF1¨ù" |
| KG |
1.2 |
1.8 |
2.0 |
|
