Liquid   Water
  Max. Pressure   2MPa
  Max. Temperature   130¡É
  Min. Unit   1§¤
  Max. Registration   99,999,999§¤
  Accuracy   ¡¾2%
  Installation   Vertical installation   required




Having numerous experiences of wing and impeller type gauge

  production, out company is not producing the special purpose gauge for high temperature / high pressure condition.


Type Diameter(mm) Scope of flow(§©/h)
SSW-HP-25 A 25mm 0.5 ~ 2.5
B 25mm 1.0 ~ 5.0
SSW-HP-40 A 40mm 2.9 ~ 9.0
B 40mm 3.0 ~ 15.0
SSW-HP-50 A 50mm 3.0 ~ 15.0
B 50mm 6.0 ~ 25.0

Type Diameter(mm) Scope of flow(§©/h)
SSW-HP-25E A 25mm 0.1 ~ 2.5
B 25mm 0.4 ~ 5.0
SSW-HP-40E A 40mm 0.7 ~ 10
B 40mm 1 ~ 15
SSW-HP-50E A 50mm 2 ~ 15
B 50mm 3 ~ 25

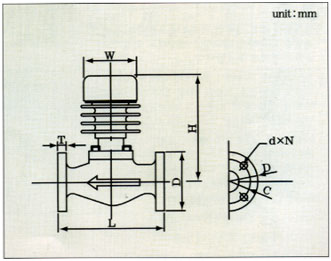

(Unit : mm)
TYPE SIZE
D L  H  W C T d N
SSW-HP-25 125 225 288 110 90 18 19 4
SSW-HP-40 140 245 300 110 105 20 19 4
SSW-HP-50 155 245 300 110 120 20 19 4


Precise measurement is done by 5 different

  PPS Synthetic Resin Impeller, featuring easy disassembly.



Body: FC-20

Parts : PPS Synthetic Resin
Impeller : PPS Synthetic Resin
