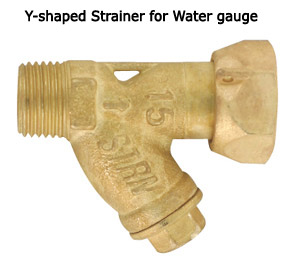

Low-lead screw and union-type Y-shaped

  strainer

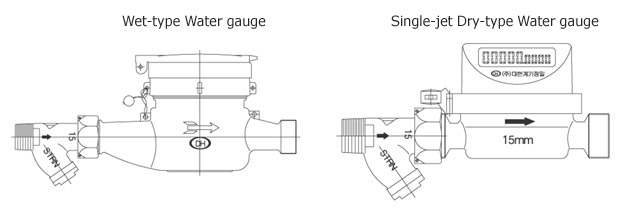

Compact size and large-scale filter for good

  installation of water gauge

Corrosion resistant filter made of stainless

  steel net

Integration of strainer features shorter piping and

  cost-efficient installation.

Prevents malfunctions of water gauge from alien

  substances.

Easy disassembly of filter by removing the cap

  from the body, on an occasion of cleaning the filter.

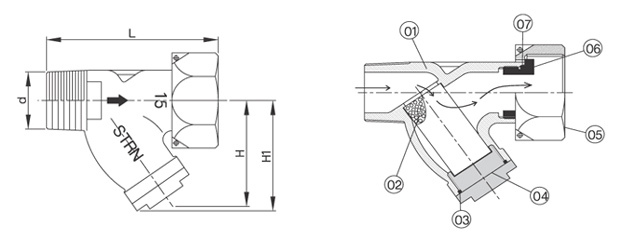

Size L H H1 D
15A 55 36.5 39 PT 1/2"
20A
25A



Product No

Part

Material

01 Body CAC203
02

Filter net

STS304
03

Cap O-ring

NBR
04

Cap

C3771BE
05

Union nut

CAC203
06

Nut bushing

C3771BE
07

Bushing O-ring

NBR
