- Tangential Wing-type
 High-precision Wet-type

-
Digital Remote Control-
 type(Single-jet)





Various types (Single-jet / Double-jet) - Features consistent measurement under various flow

  levels.
  Jet types / Lengths are variable according to special installation conditions.

Rotatable indicator - Features good measurement from various angles.

Good durability - with use of highly durable special materials.

Efficient management - Valid for both individual and integrated measurement

  (Pulse-type / Data-transfer type feasible).


Size

Type(Division)

Single-jet Dry-type

15mm 20mm 25mm

Overload flow rate (§©/h)

2.0 3.12 5.0
Maximun flow rate (§©/h) 1.6 2.5 4.0
Minimun flow rate (§©/h) 0.016 0.025 0.04

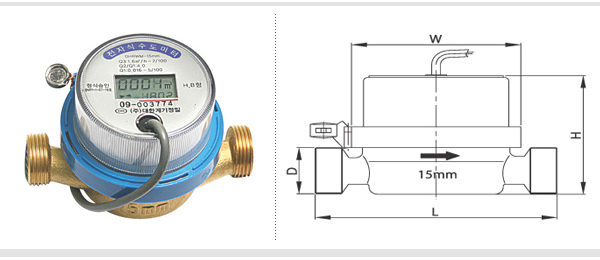

Demension Thread (mm) PF 3/4" PF 1" PF 1 1/4"
Length (mm) 110 130 130
Height (mm) 67 68 69
Width (mm) 79
Environment Grade B
