| Max. Pressure |
1MPa |
| Max. Temperature |
100¡É
(Diesel 40¡É) |
| Accuracy |
Within 0.5% |
| Max. Registration |
999,999,99§¤ |
| Min. Unit |
0.01§¤ |
| Installation |
Horizontal installation required |
|
| |
|
|
| |
|
|
 |
 |
OUTER HOUSING .............¡æ
FC 20 (for General purpose) |
| |
........................
¡æ Stainless Steel (for Special purpose) |
|
TOOTHED ROTOR |
| |
................¡æ
Carbon, Bronze Gear (for General purpose) |
| |
..........................¡æ
Stainless Steel (for Special purpose) |
|
GEAR SHAFT
......................¡æ
Stainless Steel |
|
O-RING ...........................¡æ
Tefion (for Special purpose) |
|
|
|
| |
|
|
Good durability: Impellers are made out of carbon, reducing weight to keep good precision in comparison |
| |
to copper plating. |
|
Supports various flows, high precision. |
|
Easy Installation. |
|
Good design. |
|
Optional Pulse sender features remote control of oil meter. |
|
| |
 |
 |
Diesel |
Heavy oil |
| 3
~ 5cp |
15
~ 300cp |
| SSO-20 |
20mm |
80 ~ 1,000 §¤/h |
80 ~ 1,000 §¤/h |
| SSO-25 |
25mm |
130 ~ 2,500 §¤/h |
130 ~ 2,500 §¤/h |
| SSO-40 |
A |
40mm |
150 ~ 2,500 §¤/h |
150 ~ 2,500 §¤/h |
| SSO-40 |
B |
40mm |
1,000 ~ 10.000
§¤/h |
1,000 ~ 10.000
§¤/h |
| SSO-50 |
A |
50mm |
1,000 ~ 10.000
§¤/h |
1,000 ~ 10.000
§¤/h |
| SSO-50 |
B |
50mm |
2,500 ~ 25.000
§¤/h |
2,500 ~ 25.000
§¤/h |
| SSO-80 |
80mm |
3,000 ~ 40.000
§¤/h |
3,000 ~ 40.000
§¤/h |
|
| |
 |

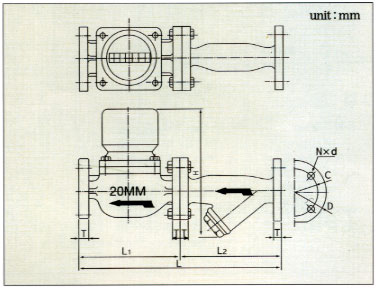

| Type |
Diesel |
| L |
L1 |
L2 |
H |
D |
C |
d |
N |
T |
| SSO-20 |
334 |
160 |
170 |
161 |
100 |
75 |
15 |
4 |
18 |
| SSO-25 |
419 |
205 |
210 |
182 |
125 |
90 |
19 |
4 |
18 |
| SSO-40A |
449 |
225 |
220 |
192 |
140 |
105 |
19 |
4 |
20 |
| SSO-40B |
500 |
280 |
220 |
240 |
140 |
105 |
19 |
4 |
20 |
| SSO-50A |
534 |
280 |
250 |
240 |
155 |
120 |
19 |
4 |
20 |
| SSO-50B |
579 |
325 |
250 |
300 |
155 |
120 |
19 |
4 |
20 |
| SSO-80 |
579 |
325 |
250 |
315 |
185 |
150 |
19 |
8 |
22 |
|
| |
 |
| |
|
| |
|
